- Supports 3rd Generation Intel® Xeon® Scalable Processors.
- Support for PCIe Gen4, resulting in improved bandwidth and throughput.
- Support for industry-standard OCP 3.0 Network Adapters.
- Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.
The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel® Xeon® Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Data Analytics
- Point-of-Sale (POS)
- Retail Servers
- Virtualization
Differences between the Gen10 and the Gen10 Plus
Let’s start by explaining some differences between the DL380 Gen10 and the DL380 Gen10 Plus. The Plus server has upgraded CPUs with 3rd Gen Intel Xeon Scalable Processors and has 8 more DIMMS for a total of 32 DIMMs. The Plus server has 2 extra Mid-Tray upgrade storage options. 8SFF U.3 x1 Mid Tray (P27193-B21) and the 8SFF U.3 x4 Mid Tray (P39769-B21) along with the 4LFF Mid Tray Kit (P26919-B21) internal drive options. Only one Mid-Tray can be installed at a time and a Drive Mid Tray cannot be selected with Processors above 165W. One major note is the High-Performance Heat Sink Kit (P27095-B21) and any FL PCIe Cards cannot be installed along with any Mid Tray. The Mid Tray sits on top of the DIMMS and the CPUs.
- 3rd Gen Intel Xeon Scalable Processors
- 8 more DIMMS for a total of 32 DIMMs
- 2 extra Mid-Tray upgrade storage options
- Mid Tray not supported with Processors above 165W
- High-Performance Heat Sink Kit (P27095-B21) Not supported with Mid-Tray
HPE DL380 Gen10 Plus Maximum Internal Storage
- Hot Plug SFF SAS HDD 397.8 TB 24 2 x 15.3 TB* (with optional rear SFF drive cage)
- Hot Plug SFF SATA HDD 291.84 TB 24 8 6 x 7.68 TB (with optional SFF drive cage)
- Hot Plug LFF SAS HDD 360 TB 12 4 4 x 18 TB (with optional mid–tray and rear LFF primary riser drive cage, plus rear LFF tertiary riser drive cage)
- Hot Plug LFF SATA HDD 360 TB 12 4 4 x 18 TB (with optional mid–tray and rear LFF primary riser drive cage, plus rear LFF tertiary riser drive cage)
- Hot Plug SFF NVMe PCIe SSD 385.92 TB 24 x 15.36TB 8 x 1.92TB<12W 2 x 960GB<10W
DL380 G10 8x 3.5" Chassis
Front Upgrades:- Universal Media Bay (Default)
- Optical Disk Drive (ODD)
- 2 SFF BC SAS/SATA 12Gb (P26925-B21)
- 2 SFF BC SAS/SATA (P55699-B21)
- 2 SFF BC U.3 24G Tri-mode (P26924-B21)
- Can't upgrade to 12 LFF
Mid Upgrades:
- 4LFF SAS/SATA (P55700-B21)
- 4LFF SAS/SATA 12Gb (P26919-B21)
Rear Upgrades:
- 2LFF Pri (P14579-B21)
- 2LFF Sec (P25903-B21)
- 2LFF Ter (P14580-B21)
- 2LFF UBM to Tri-Mode Pri (P55518-B21)
- 2LFF UBM to Tri-Mode Ter (P55519-B21)
- 2SFF SAS/SATA BC Ter (P55698-B21)
DL380 G10 12x 3.5" Chassis
Front Upgrades:- N/A
Mid Upgrades:
- 4LFF SAS/SATA (P55700-B21)
- 4LFF SAS/SATA 12Gb (P26919-B21)
- 8SFF x1 Tri-Mode 24G U.3 BC (P27193-B21)
- 8SFF x4 Tri-Mode 24G U.3 BC (P39769-B21)
Rear Upgrades:
- 2LFF Pri (P14579-B21)
- 2LFF Sec (P25903-B21)
- 2LFF Ter (P14580-B21)
- 2LFF UBM to Tri-Mode Pri (P55518-B21)
- 2LFF UBM to Tri-Mode Ter (P55519-B21)
- 2SFF SAS/SATA BC Ter (P55698-B21)

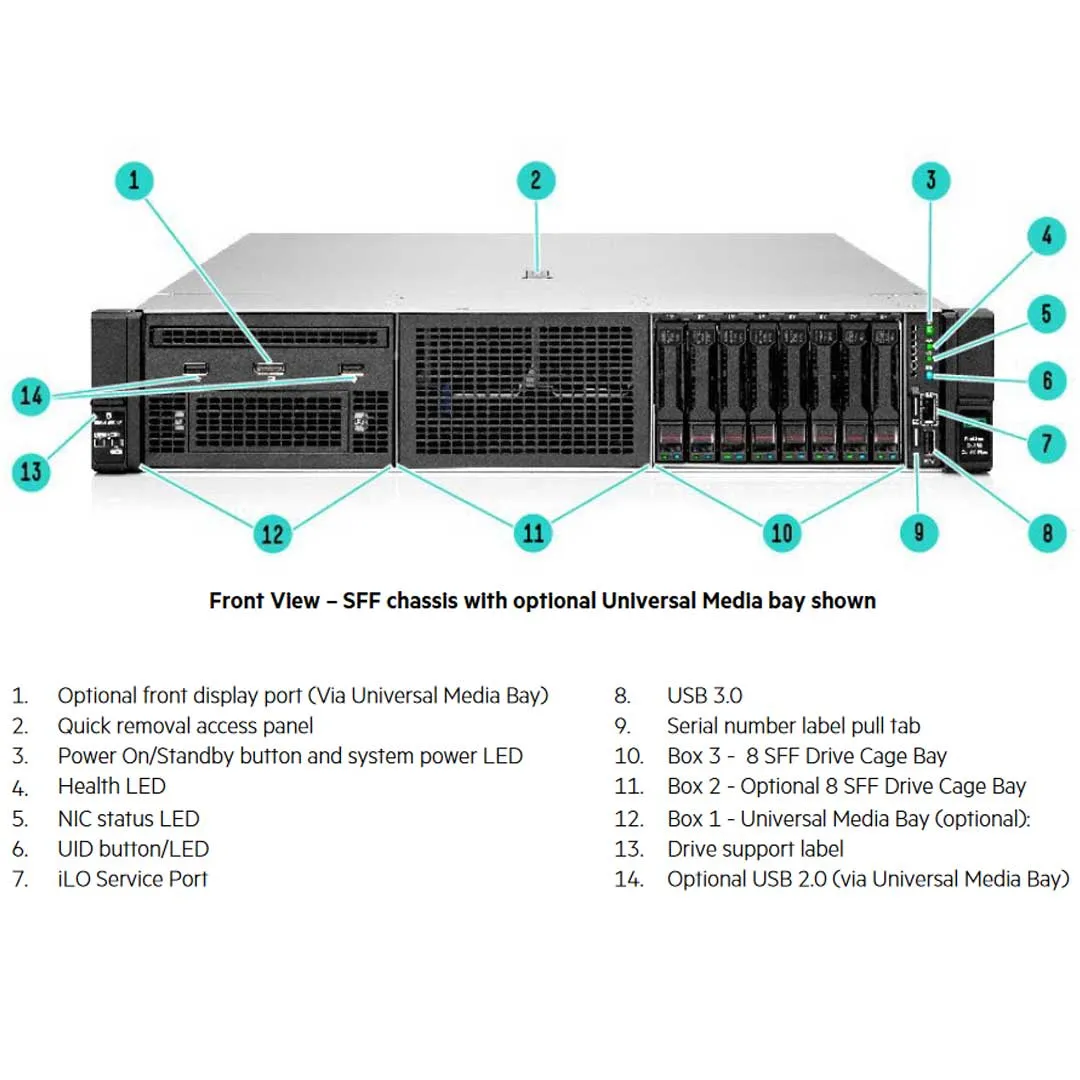

DL380 G10 8x 2.5" Chassis
Box 1 Only:- Universal Media Bay (P14609-B21)
- Optical Disk Drive (ODD)
- 2SFF SAS/SATA BC (P55698-B21)
- 2SFF SAS/SATA BC 12Gb (P26923-B21)
- 2SFF x4 Tri-Mode 24G U.3 BC (P26922-B21)
Box 1,2, & 3:
- 8SFF SAS/SATA to Tri-Mode (P55516-B21)
- 8SFF SAS/SATA 12G BC (Bay 1/2 P26930-B21)
- 8SFF x4 NVMe 16G U.2 BC (P26932-B21)
- 8SFF x4 Tri-Mode 24G U.3 BC (P26931-B21)
- 8SFF x1 Tri-Mode 24G U.3 BC (P27194-B21)
Mid Upgrades:
- 8SFF x1 Tri-Mode 24G U.3 BC (P27193-B21)
- 8SFF x4 Tri-Mode 24G U.3 BC (P39769-B21)
Rear Upgrades:
- 2SFF SAS/SATA Pri/Sec (P55696-B21)
- 2SFF SAS/SATA BC Ter (P55698-B21)
- 2SFF SAS/SATA 12G BC Pri/Sec (P26920-B21)
- 2SFF SAS/SATA 12G BC Ter (P26923-B21)
- 2SFF x4 Tri-Mode 24G U.3 BC Ter (P26922-B21)
- Total 38 SFF drives
DL380 G10 24x 2.5" Chassis
Box 1, 2, & 3:- 8 SFF SAS/SATA (Default)
Mid Upgrades:
- 8SFF x1 Tri-Mode 24G U.3 BC (P27193-B21)
- 8SFF x4 Tri-Mode 24G U.3 BC (P39769-B21)
Rear Upgrades:
- 2SFF SAS/SATA Pri/Sec (P55696-B21)
- 2SFF SAS/SATA BC Ter (P55698-B21)
- 2SFF SAS/SATA 12G BC Pri/Sec (P26920-B21)
- 2SFF SAS/SATA 12G BC Ter (P26923-B21)
- 2SFF x4 Tri-Mode 24G U.3 BC Ter (P26922-B21)
- total 38 SFF drives
Chassis Configurations - Click to Open
| Networking Choice CTO Server Models | HPE ProLiant DL380 Gen10 Plus 8LFF NC CTO Server | HPE ProLiant DL380 Gen10 Plus 12LFF NC CTO Server | HPE ProLiant DL380 Gen10 Plus 8SFF NC CTO Server | HPE ProLiant DL380 Gen10 Plus 24SFF NC CTO Server |
|---|---|---|---|---|
| SKU Number | P05175-B21 | P05174-B21 | P05172-B21 | P05173-B21 |
| TAA SKU* | P05175-B21#GTA | P05174-B21#GTA | P05172-B21#GTA | P05173-B21#GTA |
| HPE Trusted Supply Chain | P36394-B21 – Optional | Not included as standard | ||
| Processor | Not included as standard | |||
| DIMM Slots | 32-DIMM slots | 32-DIMM slots | 32-DIMM slots | 32-DIMM slots |
| Storage Controller | Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller | |||
| PCIe | Three standard in primary riser | |||
| Drive Cage - included | 8 LFF | 12 LFF | 8 SFF | 24 SFF |
| Network Controller | Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Notes: No embedded networking |
|||
| Fans | 6-Standard | 6-Performance | 4-Standard | 6-Performance |
| Management | HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional) | |||
| USB | 1x 3.0 standard plus iLO front service port | None as standard | 1x 3.0 standard plus iLO front service port | 1x 3.0 standard plus iLO front service port |
Chassis Upgrades - Click to Open
| CTO Server | 8 SFF CTO Chassis | 24 SFF CTO Chassis | 8 LFF CTO Chassis | 12 LFF CTO Chassis |
|---|---|---|---|---|
| Included Drive Cage | 8 SFF SAS/SATA | 3x 8 SFF SAS/SATA | 8 LFF UMB | 12 LFF Chassis |
| Universal Media Bay | 1 Optional | Not available | 1 Included | Not available |
| ODD | 1 Optional with UMB | Not available | 1 Optional | Not available |
| 8 SFF Drive Cage | Up to 2 Optional | Not available | Not available | Not available |
| 8 NVME/SAS Bay | Up to 3 Optional | Not available | Not available | Not available |
| 8 NVME Cage | Up to 3 Optional | Not available | Not available | Not available |
| 2 SFF SAS/SATA (Front) | 1 Optional with UMB | Not available | Not available | Not available |
| 2 SFF SAS/SATA (Rear) | 1 Optional | 1 Optional | 1 Optional | 1 Optional |
| 2 NVMe (Front) | 1 Optional with UMB | Not available | 1 Optional | Not available |
| 4 LFF Mid-plane | Not available | Not available | 1 Optional | 1 Optional |
(P55700-B21)
(P26919-B21)
(P27193-B21)
(P39769-B21)
The DL380 Gen10 Plus is a 2U 2 Socket Rack Server with 32 total DIMMS 16 DIMM slots per processor, 8 channels per processor, and 2 DIMMs per channel. Every chassis for the Plus server is a Network Choice (NC) rack server. With no embedded network option, you must choose a network card.
The DL380 Gen10 Plus supports a maximum of 16 Intel Optane Persistent Memory with 2P 3rd Generation Intel Xeon Processors. This option requires the selection of a Maximum Performance Fan Kit (P14608-B21). If not all the DIMMs are filled out, you must install the HPE DDR4 DIMM Blank Kit (P07818-B21).
- (LRDIMM) 8.0 TB 32 x 256 GB LRDIMM @ 3200 MT/s
- (RDIMM) 2.0 TB 32 x 64 GB RDIMM @ 3200 MT/s
- (Intel Optane Persistent Memory for HPE) 8.0 TB 16 X 512 GB Memory Modules
This server supports many options for controllers to be installed. You have the normal stand-up PCIe card, you have the Flexible Smart Array Type-A Adaptive RAID on Chip (AROC) Cards, and the embedded SR100i which has support for 12 SATA and max 2 NVMe drives with appropriate risers installed. I recommend you read the Spec Manual below for more details.
-
HPE SR Gen10 Plus Controllers
-
HPE MR Gen10 Plus Controllers
- SR100i Gen10 Plus
- Intel® Virtual RAID on CPU (Intel® VROC)
-
Notes:
- VROC - Must install second processor
Essential Smart Array RAID
- SR E208i-a Gen10
- SR E208i-p Gen10
- SR E208e-p Gen10
Performance RAID Controller
- SR P408i-a Gen10
- SR P408i-p Gen10
- SR P408e-p Gen10
- SR P816i-a Gen10
-
Required:
- HPE Smart Hybrid Capacitor (P02377-B21)
- HPE Smart Storage Battery (P01366-B21)
Performance RAID Controller
- MR416i-p Gen10 Plus
- MR416i-a Gen10 Plus 12G
- MR216i-p Gen10 Plus 12G
- MR216i-a Gen10 Plus 12G
- SR932i-p Gen10 Plus
- SR416i-a Gen10 Plus
-
Notes:
- SR932i-p & SR416i-a
- PE80xx NVMe drives are not supported
Boot Drives are a great way to load the OS for the server without taking up a drive. With the DL380 Gen10 Plus Rack Server, you can install the HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21). Which requires the UEFI boot mode to be enabled. The other boot option is the use of an HPE 32GB microSD RAID 1 USB Boot Drive (P21868-B21).
Below is a table showing you the Slots, Drive count, and NVMe ports per riser. If you plan to install a second and or, third riser. You must also install a second processor.
Please read the manual below for all the rules and limitations.
- Mid-Plane Drive-Tray do not support FL PCIe Cards
- Not all drive cages are supported with Tri-Mode controller
- Not all Chassis support all PCI risers.
Riser Information - Click to Open
| Part Number | Description | Riser Position | Bus Width (Gen3 Lanes) | NVMe Direct Connect | |||||
|---|---|---|---|---|---|---|---|---|---|
| Primary | Secondary | Tertiary | Top Slot | Middle Slot | Bottom Slot | Ports | Drive Count | ||
| N/A | This is the default riser in the chassis | D | N | N | x8 | x16 | x8 | - | - |
| P37038-B21 | HPE DL380 Gen10 Plus x8/x16/x8 Prim FIO Kit | O | N | N | x8 | x16 | x8 | - | - |
| P14587-B21 | HPE DL38X Gen10 Plus x8/x16/x8 Sec Riser Kit | O | O | N | x8 | x16 | x8 | - | - |
| P14581-B21 | HPE DL38X Gen10 Plus 2x8 Tertiary Riser Kit | N | N | O | x8 | x8 | - | - | - |
| P14588-B21 | HPE DL38X Gen10 Plus x16 Tertiary Riser Kit | N | N | O | x16 | - | - | - | - |
| P14589-B21 | HPE DL38X Gen10 Plus 2x16 Slot 1/2 Riser Kit | N | N | O | x16 | x16 | - | - | - |
| P14590-B21 | HPE DL38X Gen10 Plus 2x16 Slot 2/3 Riser Kit | O | O | N | - | x16 | x16 | - | - |
| P14592-B21 | HPE DL38X Gen10 Plus 2x16 Slot 1/2 FIO Kit | O | N | N | x16 | x16 | - | - | - |
| P14599-B21 | HPE DL38X Gen10 Plus 2x16 Slot 2/3 FIO Kit | O | N | N | - | x16 | x16 | - | - |
| P14600-B21 | HPE DL38X Gen10 Plus Slot1 x16 Slot2/3 Kit | O | O | N | x16 | - | - | - | - |
| P27089-B21 | HPE DL380 Gen10 Plus 2p x16 SlimSAS Sec Kit | N | O | N | - | x16 | - | 2 | 4 |
| P27090-B21 | HPE DL380 Gen10 Plus 2p x16 SlimSAS Prim Kit | O | N | N | - | x16 | - | 2 | 4 |
| P27091-B21 | HPE DL380 Gen10 Plus 3p x8 SlimSAS Prim Kit | O | N | N | - | x8 | - | 3 | 6 |
| P27092-B21 | HPE DL380 G10 4p SlimSAS Prim Riser Kit | O | N | N | - | - | - | 4 | 8 |
| P27093-B21 | HPE DL380 Gen10 Plus 2p SlimSAS Tertiary Kit | N | N | O | - | - | - | 2 | 4 |
| P35416-B21 | HPE DL380 Gen10 Plus 3p x8 SlimSAS Sec Kit | N | O | N | - | X8 | - | 3 | 6 |
| P35417-B21 | HPE DL380 G10 4p SlimSAS Sec Riser Kit | N | O | N | - | - | - | 4 | 8 |
| P38771-B21 | HPE DL38X Gen10 Plus PRI/SEC wo Retainer Kit | O | O | N | - | - | - | - | - |
| P38774-B21 | HPE DL38X Gen10 Plus Ter wo Retainer Kit | N | O | O | - | - | - | - | - |
| P14575-B21 | HPE DL38X Gen10 Plus Prim NEBS Riser Kit | O | O | N | x8 | x8 | x8 | - | - |
| P14577-B21 | HPE DL38X Gen10 Plus Tertiary NEBS Riser Kit | N | O | O | x16 | - | - | - | - |
| P25903-B21 | HPE DL38X Gen10 Plus 2LFF Low Profile Secondary Riser Kit | N | O | N | - | - | - | - | - |
| P14580-B21 | HPE ProLiant DL38X Gen10 Plus 2LFF Tertiary Riser Cage Kit | N | N | 0 | - | - | - | - | - |
There are some GPUs that you can’t install along with network adapters above 40GB. Each GPU has a few limitations and requirements. There are so many we can’t put them all here. If you view the GPU or read the Spec Manual below, you will be able to see all the rules that come with each GPU. With most GPUs, there is a limitation of only 8 NVMe drives allowed to be installed and another limitation about where they can be installed.
GPU Information - Click to Open
| Part Number | Card | Qty Support | PCIe |
|---|---|---|---|
| R9P49C (1,2,6) | NVIDIA A100 80GB PCIe NonCEC Accelerator | 2 | Gen4 |
| R6B53C (1,2,6) | NVIDIA A100 40GB PCIe Computational Accelerator for HPE | 3 | Gen4 |
| R7E31C (1,2,6) | NVIDIA A40 48GB PCIe Graphics Accelerator for HPE | 2 | Gen4 |
| R9S37C (1,2,6) | NVIDIA A40 48GB PCIe Non-CEC Accelerator for HPE | 3 | Gen4 |
| R7G39C (1,2,6) | NVIDIA A30 24GB PCIe Accelerator for HPE | 3 | Gen4 |
| R7G40C (1,2,4) | NVIDIA A10 24GB PCIe Accelerator for HPE | 5 | Gen4 |
| R9H23C (1,2,5) | NVIDIA A2 16GB PCIe NonCEC Accelerator | 8 | Gen4 |
| R0W29C (1,2,5) | HPE NVIDIA Tesla T4 16GB Module | 8 | Gen4 |
|
Notes: 1 - Requires High Performance Fan Kit (P14608-B21). 2 - Supported on CPUs with 270W TDP or below. 3 - Temperatures shown in column are for ambient temperature in degrees Celsius. 4 - Requires DL300 Gen10 Plus GPU 2x8p Cable Kit (P39100-B21). 5 - Could observe sub-optimal performance if installed in x8 slot. 6 - Requires HPE DL300 Gen10 Plus GPU 8p Keyed Cable Kit (P39102-B21). System memory should be 2x GPU memory. There is no Energy Star certification with Graphic cards. |
|||
The DL380 Gen10 Plus supports the OCP 3.0 cards and up to 200GB PCIe cards with select riser configurations. The OCP comes standard with x8 connector but can be upgraded to x16 with the x16 OCP Enablement kit (P36661-B21). This kit might be needed depending on your card installed. Only 1 OCP 3.0 card can be installed at one time.
The system does not support FlexLOM adapters.
Please make sure the x16 PCIe cards are in an x16 lane connector. Otherwise, there might be some performance issues.
When installing InfiniBand cards there are some major limitations. Here are some rules that apply to a lot of cards.
Please read the spec manual for all the rules for each card.
- These cards are not supported with 12LFF/24SFF CTO config.
- These cards are not supported with mi
